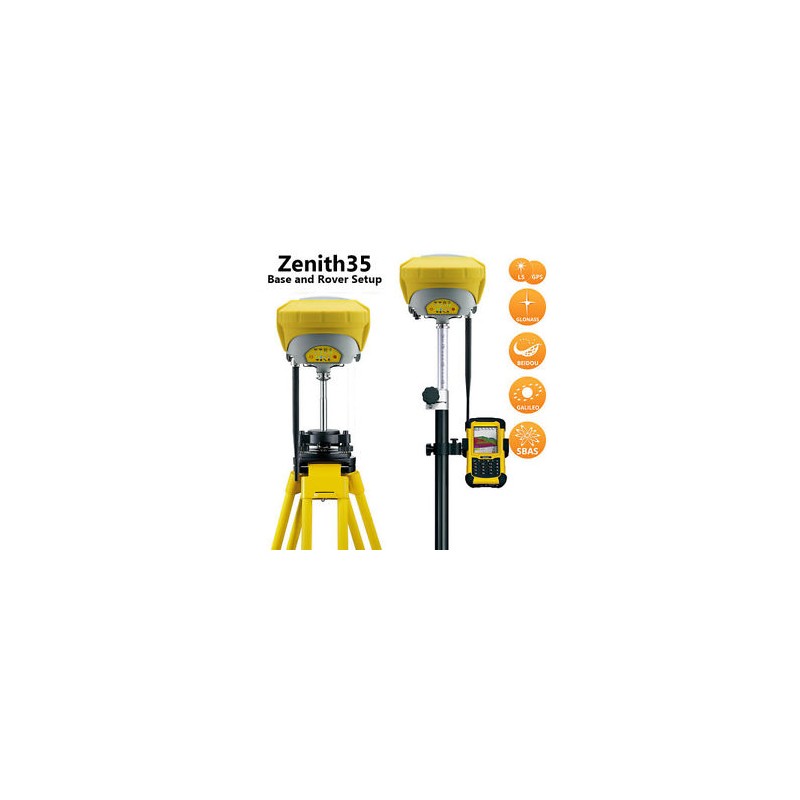

Baru GPS Geodetic Geomax Zenith 35 Pro

GPS Geodetic Geomax Zenith 35 Pro

Call for price

Tambahkan ke Wishlist

whatsapp

Baru

  • 555 channels
  • Integrated 3.75 G GSM and UHF modules
  • Dual mode: up to 30˚ tilt
  • Single mode : up to 15˚ tilt
  • Integrated WiFi module
  • 8 GB Internal memory
  • Quick removable SIM and microSD card
  • Port for external power and radio

Receiver Spesifications

AdVance technology high fix availability + reliability

Channels                             555, multi-frequency

GPS Tracking                      L1, L2, L2C, L5

Glonass tracking               L1, L2, L3

beiDou tracking                B1,B2,B3

Galileo tracking                 E1, E5a, E5b, AltBOC, E6

Positioning rate                 5Hz, 20Hz(opt)

SBAS                                EGNOS, WAAS, MSAS, GAGAN, QZSS



Receiver accuracy

Static horizontal                3mm ± 0.5 ppm(rms)

Static Vertical                     5mm ± 0.5 ppm (rms)

Kinematic horizontal       8mm ± 1 ppm (rms)

Kinematic vertical            15mm ± 1 ppm (rms)

Static long horizontal      3mm + 0.1 ppm (rms)

Static long vertical            3.5mm + 0.4 ppm (rms)



Interfaces

Keyboard                            On/off and function key

LED status indicators       Position, battery, Bluetooth, WiFi, RTK receive, RTK transmit, data storage

LED mode indicators       Rover, base, static

Data recording                  Dual; microSD card and 8GB internal memory

GS/TCP/IP                           Removable SIM card



Quality mode

RTK modes                         Selectable; ExtraSafe, Standard

Tilt&Go modes                  Selectable; Single/Dual



Comumunication

GSM/GPRS module        Quad-Band GSM & Penta-Band

                                                UMTS 800 / 850 / 900 / 1900 2100 MHz

UHF radio module           500mW, 1000 mW transceiver, 403 – 473 MHz

Bluetooth                            Devaice class II

TNC connector                  UHF antenna, UMTS/GSM antenna

Communcation port       USB, serial & power



Physical specifications

Dimensions                        Height 131 mm, 161 mm

Operating temp                  -40˚C to 65˚C

Protection class                   IP68 dust and waterproof

Humidity                             100%, condensing

Vibration                             ASAE EPa455 Section 5.15.1 Random, MIL-STD-810G, method 514.6E-I

Shock                                    Withstands 2m drop onto hard surface



Power Supply

Internal battery                Removable, Li-Ion 3.4 Ah / 11.1 V

Operating time                 8h in static / 6 h in rover mode

External power                 9 V to 18 V, Lemo plug
