Baru GPS Trimble Juno SA

GPS Trimble Juno SA

Call for price

Tambahkan ke Wishlist

whatsapp

Baru

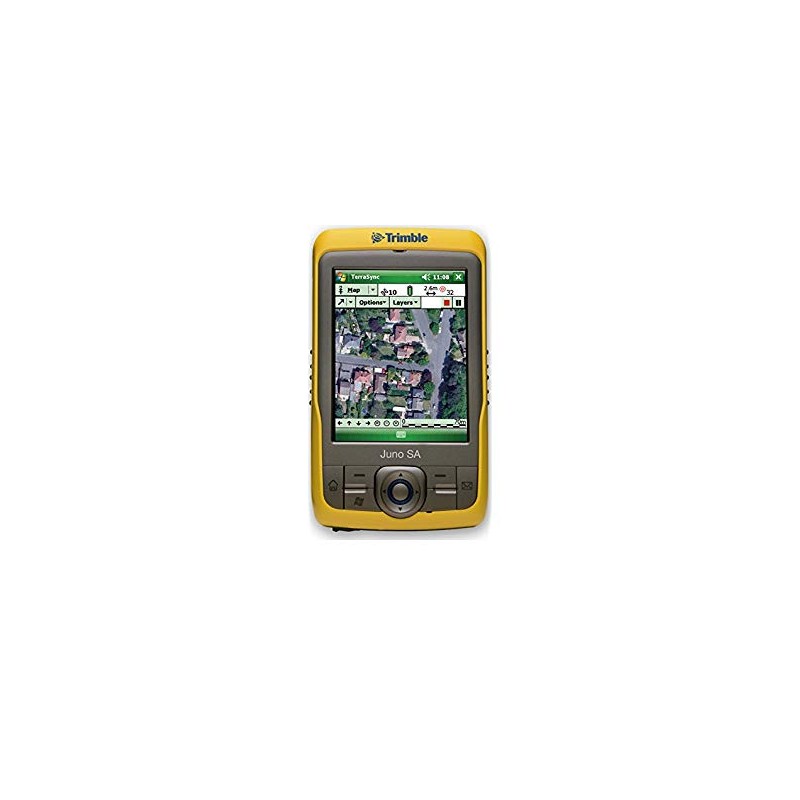

GPS Trimble Juno SA, adalah perangkat GPS GIS dari trimble yang dibuat dengan simple, praktis tetapi mempunyai kemampuan yang cukup baik. GPS Trimble Juno SA dengan operating systems windows mobile 6, merupakan perangkat GIS yang ekonomis.

sold

Produk ini telah habis stok

System
• Windows Mobile 6.1 in Chinese (Simplified), English, French,
German, Italian, Japanese, Korean, Portuguese (Brazilian), Russian,
or Spanish
• 533 MHz Samsung processor
• 128 MB RAM
• 128 MB non-volatile Flash data storage
• microSD (microSDHC compatible) memory card slot
• QVGA display (240 x 320), sunlight-readable color touch screen
• All-day internally rechargeable and removable Li-Ion battery
• Integrated speaker and microphone
• Audio jack
GPS
• Integrated high-sensitivity GPS/SBAS1 receiver and antenna
• 2 to 5 meter accuracy after real-time differential correction
• 1 to 3 meter5 accuracy after postprocessing
• NMEA and SiRF protocol support
Standard Software
• Adobe Reader
• Transcriber (handwriting recognition)
Standard Accessories
• USB data cable2
• Stylus
• Rechargeable Li-ion battery

TeCHNICAl SPeCIFICATIoNS
Physical
Size . . . . . . . . . . . . . 12.9 cm × 7.4 cm × 3.0 cm (5.1 in × 2.9 in × 1.2 in)
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.23 kg (0.52 lb) with battery
Processor . . . . . . . . . . . . . . . . . . . 533 MHz Samsung S3C2443 processor
Memory. . . . . . . . . . . .128 MB RAM and 128 MB internal Flash storage
Battery. . . . . . . . . Internal 2600 mAh lithium-ion, rechargeable in unit
Power
Low (no GPS, backlight ON3). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 hours
Normal (with GPS and backlight ON) . . . . . . . . . . . . . . . . . . . . . . . . 8 hours
environmental
Temperature
Operating . . . . . . . . . . . . . . . . . . . . . . . . . . .0 ºC to +60 ºC (32 ºF to 140 ºF)
Storage. . . . . . . . . . . . . . . . . . . . . . . . . . . . –20 ºC to +70 ºC (–4 ºF to 158 ºF)
Drop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76 cm (2.5 ft) drop
2 drops per 6 sides at ambient temperature 23 ºC (73 ºF)
Tumble . . . . . . . 50 cycles (100 drops) x 50 cm (1.64 ft), 5 cycles/minute
Casing . . . . . . . . . . . . . . . . IP4X. Protected against small objects >1 mm
Input/output
Expansion . . . . . . . . . . . . . . microSD Card slot (microSDHC compatible)
Display. . . . . . . . . . . . . . . . . .8.9 cm (3.5 in) QVGA (240 x 320 pixel) TFT
16 bit (65,536) colors, LED backlight
Interface . . . . . Touch screen, hardware control keys, power status LED
Audio system events, warnings, and notifications
Soft Input Panel (SIP) virtual keyboard
and handwriting recognition software
Audio. . . . . . . . Microphone and speaker, record and playback utilities
Industry-standard 3.5 mm stereo earphone jack
I/O . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . USB client v2.0 compliant
GPS
Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 (L1 code only)
Integrated real-time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .SBAS1
Update rate. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 Hz
Time to first fix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 seconds (typical)
Protocols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SiRF, NMEA-0183
Accuracy (HRMS)4 after differential correction
Code Postprocessed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–3 m5
Real-time (SBAS1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–5 m
