Baru Sale! Garmin GMR™ Fantom 18

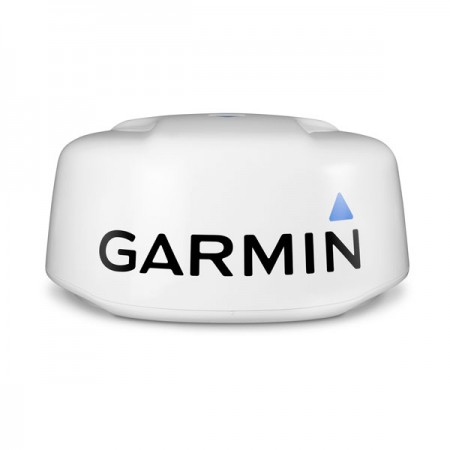

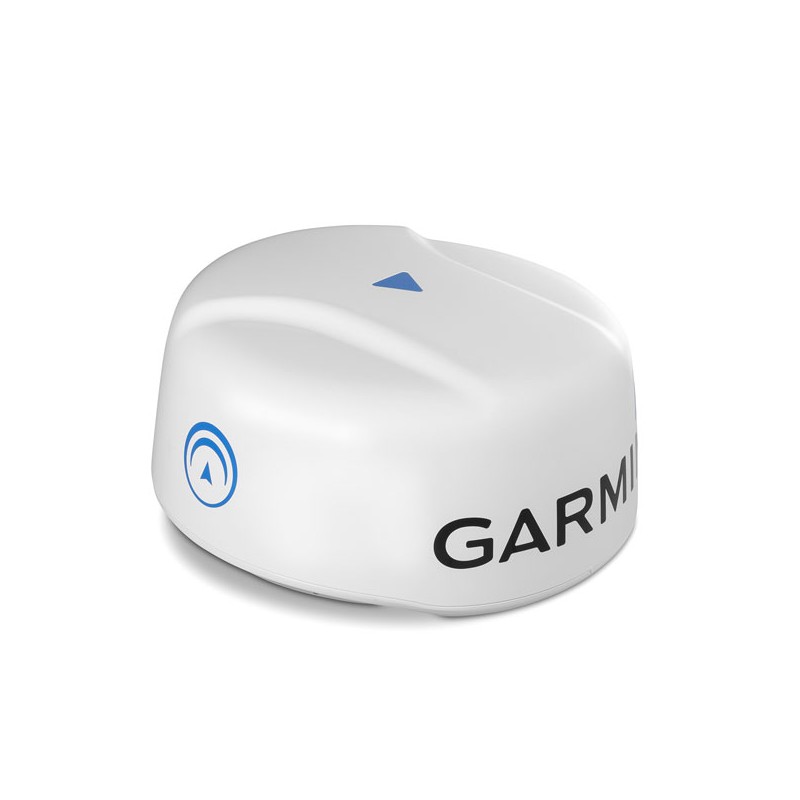

Garmin GMR™ Fantom 18

Call for price

Tambahkan ke Wishlist

whatsapp

Baru

18-inch Dome Radar with MotionScope™ Technology

  • 18-inch, 40 W solid-state, dome radar
  • MotionScope™ technology uses the Doppler effect to detect and highlight targets moving toward you or away in different colors to help avoid collisions, find flocks of birds, and track weather
  • Pulse Compression technology provides high resolution while maximizing energy, to enhance detection and identification of targets
  • Target Size allows you to adjust the size of objects on the radar image
  • 20 foot to 48 nautical mile detection range
sold

Produk ini telah habis stok

The 18-inch, 40 W solid-state Garmin GMR Fantom 18 dome radar features MotionScope technology, which uses the Doppler effect to detect and highlight moving targets to help you avoid potential collisions. Fully integrates with select Garmin chartplotters.



High-power 40 W Radar with 5.2 Degree Beam

You get excellent close- and long-range target detection ranging from as close as 20 feet to 48 nautical miles, even in fog or rain. Its 5.2 degree horizontal beamwidth provides a high resolution image and high antenna gain so it can pick out targets at a distance. The result is this radar paints a clear, concise image of the shoreline, other vessels and impending weather — right on your Garmin chartplotter. You get consistent target positions, excellent target separation and reliable operation. Its 8-bit true color imagery also helps you discriminate large targets from small ones and enhances target separation. Radar data is overlaid onto charts (autopilot or heading sensor recommended). Low power consumption, instant turn on and no delay from warming up as with magnetron radars. Rotation speeds of 24 for reduced power consumption and 48 rpm to provide fast screen updates.



MotionScope Doppler Technology

GMR Fantom radars use the Doppler effect to detect and highlight moving targets to help you avoid potential collisions, find flocks of birds and track weather formations. The Doppler effect is the frequency shift in the radar echo due to the relative motion of the target. This allows for instant detection of any targets moving toward or away from the radar. MotionScope highlights the moving targets in different colors on the radar display so you can navigate around other boats or severe weather, or toward fishing spots where birds are feeding at the surface.



Physical & Performance

Physical dimensions20" diameter, 9.8" high (50.8 cm diameter, 24.8 cm high)
Weight17 lbs (7.7 kg)
Water ratingIPX7
Antenna length17" (43.18 cm)
Power consumption3 W standby; 18.1-24.4 W transmit
Rotation speed (RPM)24/48 rpm (dual rotation)
Transmit power40W
Power input10-32 V DC
Beam width5.2° horizontal, 25° vertical
Maximum range48 nm
Minimum range6 meters
Radar typeRadome

Radar Features

High definition (outstanding target separation with less screen clutter)
MARPA target tracking (collision avoidance)(Requires Heading Sensor, Sold Separately)
Guard zone alarm
Color8 bit
Radar overlay support
Dual range support
No Transmit Zone
  • Additional

    Additional
    • MotionScope: Yes
    • Auto Bird Gain: Yes
    • Dual Radar Support: Yes
    • Echo Trails: Yes


  • GMR Fantom 18
  • Mounting hardware kit
  • Power cable (15 m/49.21 ft)
  • Network cable (15 m/49.21 ft)
  • Installation instructions
  • Mounting template

No customer comments for the moment.

Tulis komentar Anda

Garmin GMR™ Fantom 18

Garmin GMR™ Fantom 18

18-inch Dome Radar with MotionScope™ Technology

  • 18-inch, 40 W solid-state, dome radar
  • MotionScope™ technology uses the Doppler effect to detect and highlight targets moving toward you or away in different colors to help avoid collisions, find flocks of birds, and track weather
  • Pulse Compression technology provides high resolution while maximizing energy, to enhance detection and identification of targets
  • Target Size allows you to adjust the size of objects on the radar image
  • 20 foot to 48 nautical mile detection range
