Baru GPS Globalsat BU 353 USB S4

GPS Globalsat BU 353 USB S4

Call for price

Tambahkan ke Wishlist

whatsapp

Baru

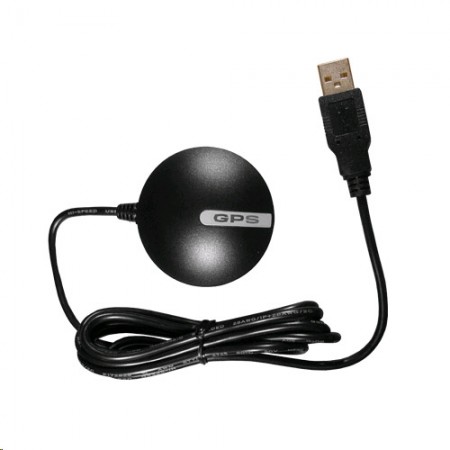

Globalsat BU-353 S4 GPS Receiver merupakan GPS tahan air yg sudah memiliki teknologi sirf star IV sehingga sangat sensitif untuk menangkap signal satelit GPS. Alat ini sangat cocok untuk kondisi yang ekstrim baik di darat, laut dan udara.

Features:

Using high performance SiRF Star IV GPS chipset
Highly sensitive (Tracking Sensitivity: -163 DBMS in) *
Extremely fast TTFF (Time To First Fix) at low signal level
Support NMEA0183 data protocol
Built-in super capacitors, system data for rapid satellite acquisition
Built-in patch antenna and a magnetic cushion
Super magnetic flux, for installation in vehicles
Waterproof and non-slip bottom
LED indicator of GPS

Specifications:

Chipset: SiRF Star IV
Frequency: L1 1575.42MHz
C / A code: 1.023 MHz chip rate
Number of Channels: 48 channels tracking
Sensitivity: -163 DBMS

Accuracy:
Location: 10 meters, 2D RMS
5 meters, 2D RMS, WAAS enable
Rate: 0.1 m / s
Time: 1 microsecond synchronized satellite

Coordinate information:
Default: WGS-84

Acquisition Time:
Readmission: Average 0.1 seconds
Hot Start: Average 1 seconds
Warm start: 38 sec average
Cold and warm start: 42 sec average

Related restrictions:
Height: 18,000 m (60,000 ft) maximum
Rate: 515 m / sec (10,000 knots) maximum
Gravity: Less than 4G

Power:
Main power input: 4.5V ~ 6.5V DC input
Power consumption: 80mA

Agreement:
Operational level: TTL level
Output Voltage: 0V ~ 2.85V
Transfer rate: 4,800 bps
Output format: NMEA 0183 GGA, GSA, GSV, RMC, VTG, GLL

Physical Characteristics:
Size: 53mm diameter, 19.2mm height
Cable length: 1.5 m
Operating temperature: -40 ° C to +85 ° C

Package Included:

1 X USB GPS Receiver
1 X Suction Cup
1 X CD Driver with user manual
