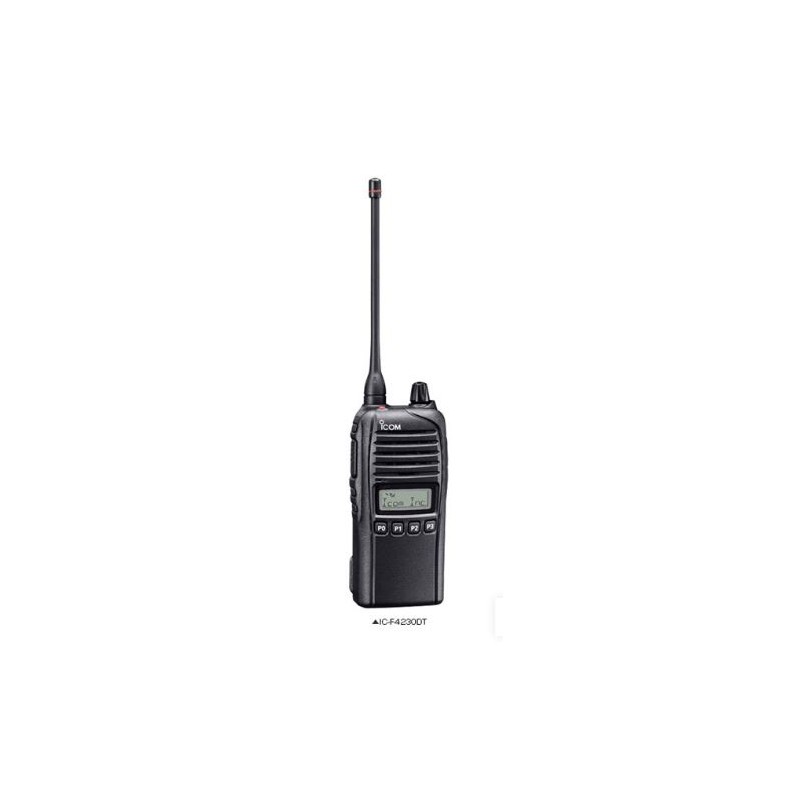

Baru HT Icom IC-F4230DT

HT Icom IC-F4230DT

Call for price

Tambahkan ke Wishlist

whatsapp

Baru

GENERAL

IC-F4230DT/DS
Frequency coverage
350–400 MHz
400–470 MHz
450–512 MHz
450–520 MHz
Number of channels
128 channels/8 zones
Channel spacing
(Varies according to version)
25*/12.5/6.25 kHz
Type of emission
16K0F3E*/11K0F3E/8K50F3E/4K00F1E/F1D
Current drain
(approx.)
Tx
1.3A (High)
Rx
400mA/100mA (Max. audio/Standby)
Dimensions (W×H×D)
(projections not included
53×120×37 mm; 2.09× 4.72×1.46 in
(With BP-232WP)
Weight (approx.)
340g; 12oz
(With MB-94R, BP-232WP & antenna)
Transmitter

IC-F4230DT/DS
RF output power
(at 7.5V DC)
4W, 2W, 1W
(Hi, L2, L1)
Spurious emissions
75dB typ.
Frequency stability
±1.0ppm
Audio harmonic distortion
1.0/2.0% typ.
(AF 1kHz 40% deviation, W/N)
FSK error
2% typ.
FM Hum and Noise
46/40dB typ. (W/N)
Receiver
IC-F4230DT/DS
Sensitivity
    (Analog 12dB SINAD)
    (Digital 5% BER)
0.24μV typ.
0.18μV typ.
Adjacent channel selectivity
74/67/58dB typ. (W/N/D)
Spurious response rejection
80dB typ.
Intermodulation rejection
76/76/72dB typ. (W/N/D)
Audio output power
(at 5% distortion, 8Ω load)
1000mW typ. (Internal SP)
400mW typ. (External SP)
