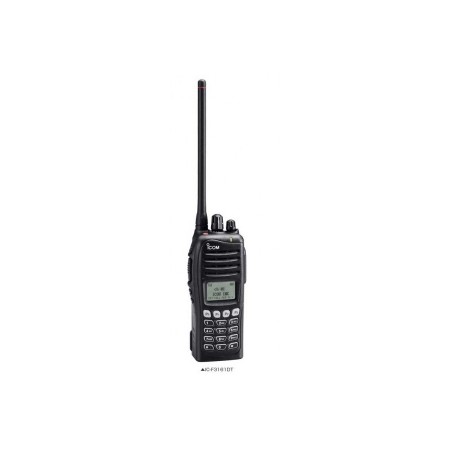

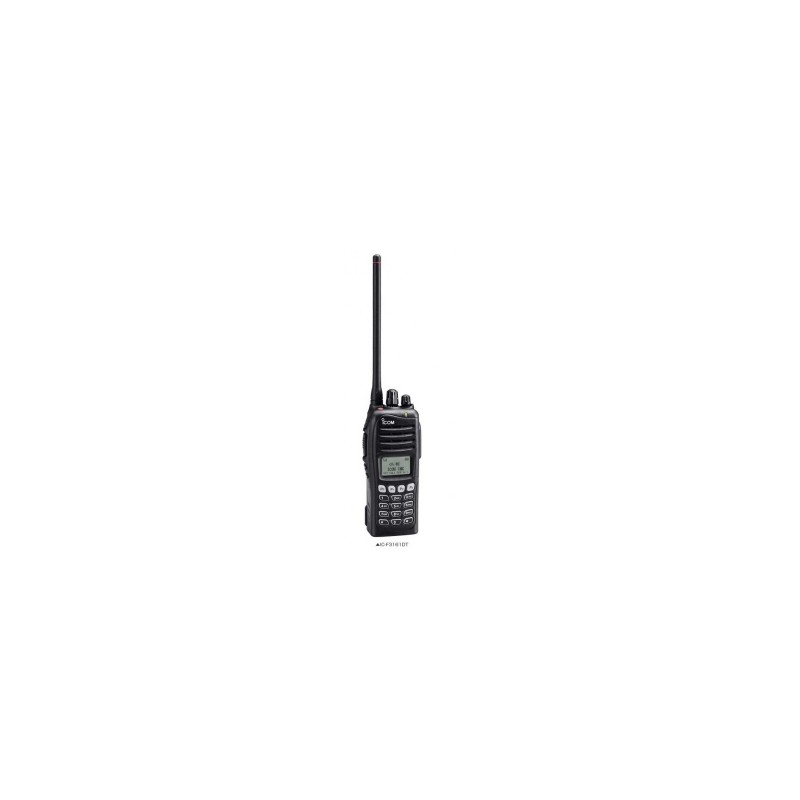

Baru HT ICOM IC-F4263D-UL

HT ICOM IC-F4263D-UL

Call for price

Tambahkan ke Wishlist

whatsapp

Baru

DIGITAL UHF TRANSCEIVER, DPMR VERSION, IC-F4263D-UL

Approved UL Classifications
• Nonincendive: Class Ι, Division 2, Groups A, B, C, D
when used with Icom BP-232UL battery pack.
• Ambient temperature: –20°C to +40°C
• ANSI/ISA 12.12.01-2015, CAN/CSA C22.2 No. 213-15


General Features
• 136–174, 350–400, 400–470, 450–512, 450–520 MHz versions
• 512 Channels / 128 Zones
• Full dot-matrix display with status icons
• Backlit LCD and buttons
• 16-position rotary selector and ON/OFF volume knob
• 800 mW loud and intelligible internal speaker audio
• MIL-STD-810 G shock, vibration, temperature and more
• IP67 dust-tight and waterproof, one meter for 30 minutes
• DTMF autodial memories


Operating Mode
(Available mode depending on version)
• 6.25 kHz digital very narrow mode
• NXDN conventional and Type-D single/multi-site trunking
• dPMR conventional and Mode 3 trunking
• NXDN/dPMR multi-site conventional over IP network
• Analog FM mode
• Analog/digital mixed operation


Digital Functions (Voice and Data)
• Individual, group and all call
• Individual ID and talkgroup ID memories
• Late entry for group call
• Status call and polling
• Short data messages
• Call alert (NXDN version)
• Transparent data mode (dPMR version)
• Call log
• Over-the-Air Update (OTAU) changes the repeater channel
data and site code over the air (NXDN Type-D trunking)


Analog Functions
• CTCSS and DTCS tone
• 2-Tone and 5-Tone
• MDC functions (NXDN version)
• BIIS 1200 (MSK)
• LTR™ trunking (NXDN version)


Safety and Security
• Digital voice scrambler
• Analog voice scrambler (Inversion)
• Power ON password
• Tactical group temporarily reconfigures user talkgroups
• Radio Stun/Revive/Kill
• Remote monitor (NXDN)/ambience listening (dPMR)
• Emergency key for emergency call
• Man down function
• Lone worker function
• Surveillance function


Scan Functions
• Priority scan
• Voting scan for site roaming
• Mode dependent scan
• Nuisance delete

Voice/Audio Functions
• Audio compander for analog mode
• Escalating alarm

GENERAL

Frequency coverage
(* Depending on version)
350–400 MHz,
400–470 MHz
Number of channels 512 channels /128 zones
Type of emission
(* Depending on version)
16K0F3E*1, 11K0F3E, 8K50F3E, 4K00F1E/F1D
Power supply requirement 7.5 V DC nominal
Current drain (approx.) Tx
Rx
1.8 A
550 mA /130 mA (Rated output/Standby)
Antenna impedance 50 Ω
Operating temperature range –30 °C to +60 °C; –22 °F to +140 °F (Radio specifications)
Dimensions (W × H × D; Projections not included) 53.5 × 142.7 × 39.5 mm; 2.1 × 5.6 × 1.6 in (With BP-232UL)
Weight (approx.) 230 g; 8.1 oz (main unit)
410 g; 14.5 oz (BP-232UL, MB-94R and FA-SC55V)

TRANSMITTER

Output power (Hi, L2, L1) 5 W, 2 W, 1 W
Max. frequency deviation ±5.0 kHz (@25 kHz), ±2.5 kHz (@12.5 kHz)
Frequency stability ±1.0 ppm
Spurious emissions 78 dB typ.
FM Hum and noise  46 dB typ. (@25 kHz), 40 dB typ. (@12.5 kHz)
Audio harmonic distortion 1.5% typ. (AF 1kHz 40% deviation)
FSK error 2% typ.


RECEIVER

Sensitivity Analog (12 dB SINAD) 0.23 μV typ. 0.24 μV typ.
Digital (5% BER) –8.0 dBμV emf typ. (0.20 μV typ. ) –8.0 dBμV emf typ. (0.20 μV typ. )
Adjacent channel selectivity Analog 78 dB typ. (@25 kHz), 68 dB typ. (@12.5 kHz) 75 dB typ. (@25 kHz), 64 dB typ. (@12.5 kHz)
Digital 60 dB typ. 60 dB typ.
Spurious response rejection 76 dB typ. 76 dB typ.
Intermodulation rejection Analog 75 dB typ. (@25 kHz), 75 dB typ. (@12.5 kHz) 75 dB typ. (@25 kHz), 75 dB typ. (@12.5 kHz)
Digital 66 dB typ. 66 dB typ.
Hum and noise 52 dB typ. (@25 kHz), 47 dB typ. (@12.5 kHz) 49 dB typ. (@25 kHz), 44 dB typ. (@12.5 kHz)
Audio output power External SP Internal SP 1000 mW 800 mW typ. (at 5% distortion, 12 typ. (at 5% distortion, 8 ΩΩ load) load) 1000 mW 800 mW typ. (at 5% distortion, 12 typ. (at 5% distortion, 8 ΩΩ load) load)
