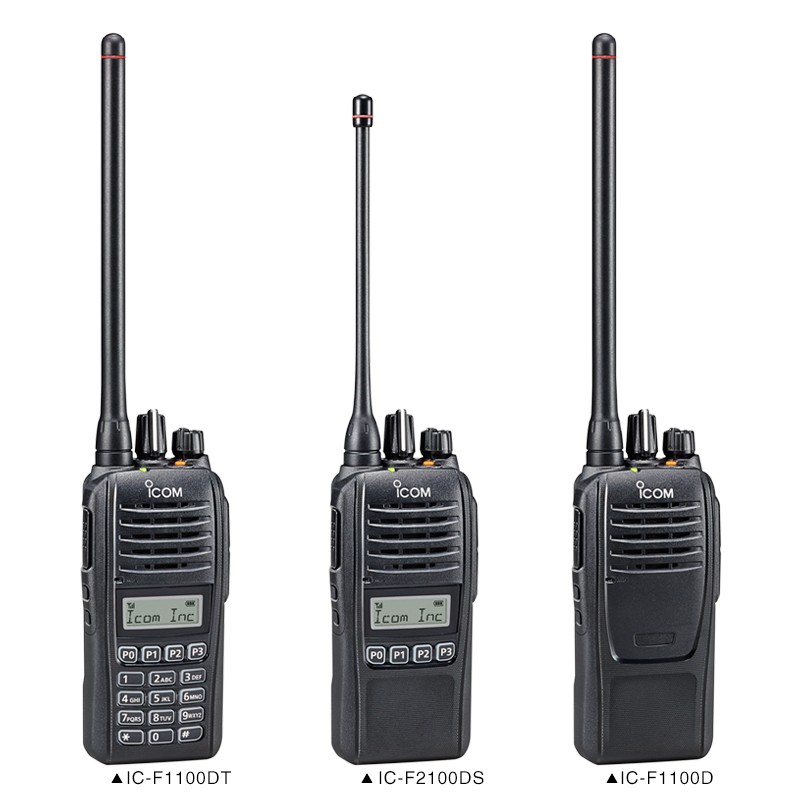

Baru ICOM IC-F1100DT / IC-F2100DS / IC-F1100D

ICOM IC-F1100DT / IC-F2100DS / IC-F1100D

Call for price

Tambahkan ke Wishlist

whatsapp

Baru

VHF AND UHF DIGITAL TRANSCEIVERS

Big on Audio, Small on Size
1500 mW Class Leading Audio

General Features

  • 136–174, 350–400, 400–470, 450–520 MHz versions
  • 128 Channels / 8 Zones (for LCD types)
  • 16 Channels (for non-display types)
  • Icom’s customized speaker offers a louder 1500 mW audio output
  • An engineered casing that amplifies and improves acoustic
  • sound clarity
  • Compact (52.2 (W) × 111.8 (H) mm; 2.1 × 4.4 in) and lightweight
  • IP67/55/54 waterproof and dust-tight protection
  • Tested to 12 categories of MIL-STD-810-G environmental tests
  • AquaQuake™ – Expels water ingress from the speaker grill
  • DTMF autodial memories
  • 16-position rotary selector and ON/OFF volume knob
  • Programmable keys – Increase the number of programmable
  • key assignments by using the “Shift key”
  • Operating times of up to 18 hours (with the supplied BP-280
  • battery pack)
  • Eight character alphanumeric display (for LCD types)
  • Three color LED
IC-F1100DT/DS IC-F1100D IC-F2100DT/DS IC-F2100D

GENERAL

Frequency coverage*
(* Varies, depending on the version)
136–174 MHz350–400 MHz (EXP)
400–470 MHz (ALL)
450–520 MHz (USA, EXP)
Number of channels 128 channels/ 8 zones 16 channels 128 channels/ 8 zones 16 channels
Type of emission*
(* Depends on the version)
11K0F3E, 4K00F1D (USA)
16K0F3E, 14K0F3E, 11K0F3E, 8K50F3E, 4K00F1D (EXP)
16K0F3E, 14K0F3E, 8K50F3E, 4K00F1D (EUR)
Power supply requirement 7.5 V DC nominal
Current drain (approximate) Tx 1.3 A 1.4 A
Rx 520 mA /110 mA (Max. audio (internal SP)/Standby) 520 mA /110 mA (Max. audio (internal SP)/Standby)
Antenna impedance 50 Ω
Operating temperature range –30°C to +60°C; –22°F to +140°F (Radio specification) (USA/EXP)
–25°C to +55°C (Radio specification) (EUR)
Dimensions (W × H × D; Projections not included) IC-F1100DS/D, IC-F2100DS/D: 52.2 × 111.8 × 29.4 mm; 2.1 × 4.4 × 1.2 in (With BP-280)
IC-F1100DT, IC-F2100DT: 52.2 × 111.8 × 34.1 mm; 2.1 × 4.4 × 1.3 in (With BP-280)
Weight (approximate)IC-F1100D, IC-F2100D: 260 g; 9.2 oz (With BP-280 and MB-133)
IC-F1100DS, IC-F2100DS: 270 g; 9.5 oz (With BP-280 and MB-133)
IC-F1100DT, IC-F2100DT: 280 g; 9.9 oz (With BP-280 and MB-133)

TRANSMITTER

Output power (Hi, L2, L1) 5 W, 2 W, 1 W 4 W, 2 W, 1 W
Maximum frequency deviation ± 5.0 kHz (25 kHz), ±4.0 kHz (20 kHz), ±2.5 kHz (12.5 kHz)
Spurious emissions 70 dB minimum (USA)
0.25 μW (≤ 1 GHz), 1.0 μW (> 1 GHz) (EUR/EXP)
Frequency stability ±1.0 ppm
Audio harmonic distortion 0.7% typ. (25 kHz), 0.9% typical (20 kHz), 1.0% typical (12.5 kHz) (at AF 1 kHz 40% deviation)
FM Hum and Noise (without CCITT filter) 40 dB typical (12.5 kHz) (USA) 44 dB typical (12.5 kHz) (USA)
Residual modulations (with CCITT filter) 52 dB typical (25 kHz), 50 dB typical (20 kHz),
46 dB typical (12.5 kHz) (EUR/EXP)
54 dB typical (25 kHz), 52 dB typical (20 kHz),
48 dB typical (12.5 kHz) (EUR/EXP)
FSK error 5% maximum
External microphone connector 3-conductor 2.5 (d) mm (1/10)/2.2 kΩ

RECEIVER

Sensitivity(at 12 dB SINAD) 0.21 μV typical 0.24 μV typical
(at 20 dB SINAD) –4 dBμV typical emf –5 dBμV typ. emf (25/20 kHz),
–2 dBμV typ. emf (12.5 kHz)
(at 5% BER) –8 dBμV typical emf (0.20 μV typical)
Adjacent channel selectivity 77 dB typ. (25 kHz), 74 dB typ. (12.5 kHz),
69 dB typ. (12.5 kHz), 59 dB typ. (digital)
76 dB typ. (25 kHz), 75 dB typ. (12.5 kHz),
69 dB typ. (12.5 kHz), 58 dB typ. (digital)
Spurious response rejection 80 dB typical
Intermodulation rejection 75 dB typ. (25/12.5 kHz), 71 dB typ. (digital) (USA/EXP) 77 dB typ. (25/12.5 kHz), 70 dB typ. (digital) (USA/EXP)
69 dB typ. (25/20/12.5 kHz), 74 dBμV emf typ. (digital) (EUR) 70 dB typ. (25/20/12.5 kHz), 74 dBμV emf typ. (digital) (EUR/EXP)
Hum and noise(With CCITT filter) 47 dB typ. (25 kHz), 43 dB typ. (12.5 kHz) (USA/EXP) 42 dB typical (12.5 kHz) (USA)
(Without CCITT filter) 52 dB typ. (25 kHz), 50 dB typ. (20 kHz),
46 dB typ. (12.5 kHz) (EUR)
50 dB typ. (25 kHz), 48 dB typ. (20 kHz),
45 dB typ. (12.5 kHz) (EUR)
AF output power (at 5% distortion) Internal SP 1500 mW typical (With an 8 Ω load)
External SP 400 mW typical (With an 8 Ω load)
External speaker connector 2-conductor 3.5 (d) mm (1⁄8)/8 Ω
