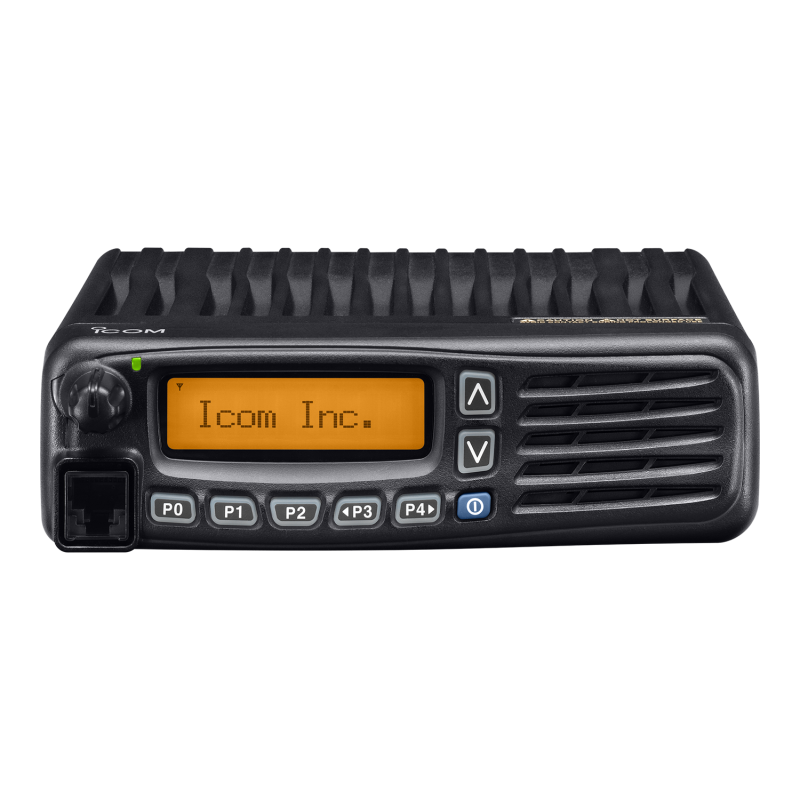

Baru ICOM IC-F5061 / IC-F6061

ICOM IC-F5061 / IC-F6061

Call for price

Tambahkan ke Wishlist

whatsapp

Baru

LTR™ / Conventional / Digital*
Multi-mode Professional Mobile !

Other Features

  • The mode slave setting automatically selects the scanning list, according to the operating channel
  • Nuisance delete
  • Built-in inversion-type voice scrambler
  • Large dot matrix display and multi-function LCD
  • 8 DTMF autodialing memories and ANI function
  • D-Sub accessory connector, ignition sensing line and more...

General



IC-F5061

IC-F6061

Frequency coverage
(Varies according to version)

136-174 MHz

400–470 MHz
450–512 MHz

Number of channels

512 ch/128 zones

Channel spacing
(Varies according to version)

12.5/25, 15/30
6.25 (option) kHz

12.5/25
6.25 (option) kHz

Type of emission

16K0F3E,
11K0F3E,
8K10F1E/D,
4K00F1E/D*1

(*1 Digital)

16K0F3E,
11K0F3E,
11K0F7E/D*2,
8K10F1E/D,
4K00F1E/D*1

(*1 Digital
*2 Depending on version)

Current drainTx High

14A/7A (50/25W)

14A/7A (45/25W)

RxStand-by

300 mA

Max. audio

1.2A

Dimensions
(projections not included; W×H×D)

160×45×150 mm;
6.3×1.77×5.91 in

Weight (approx.)

1.3kg; 2.9lb

Transmitter



IC-F5061

IC-F6061

RF output power

50W

45W

Spurious emissions

75dB (typ.)

Frequency stability

±1.0ppm

Audio harmonic distortion

3% typical
40% deviation

FM Hum and Noise

45dB typ. (W)
40dB typ. (N)

Receiver



IC-F5061

IC-F6061

Sensitivity at 12dB SINAD

0.25μV (typ. analog),
0.20μV (typ. digital at 5% BER)

Adjacent channel selectivity (W/N)

85/75dB (typ.)

Spurious response rejection

90dB (typ.)

Intermodulation rejection

77dB (typ.)

AF output power
(at 5% distortion with an 8Ω load)

4W (typ.)

Supplied Accessories
Microphone, HM-148G
Microphone hanger and its cable
Mounting bracket kit
DC power cable
Function name sticker
